Professional performance and quality in the right-sized package

Rimage Catalyst® II disc publishing systems offer industrial grade hardware, front-office friendly design and professional quality disc production, an ideal choice when high-volume production is not required. The Catalyst® II system comes standard with an Everest® Encore™ or a Prism III™ printer and, a fit for any IT environment, can be ordered with or without an embedded PC.

Rimage Catalyst® series is ideal for customers with medium-volume requirements. The Catalyst II is the perfect hybrid of the rugged durability of Producer, with the features of a Professional system. Engineered with filtered positive airflow, the Rimage Catalyst series is ideal for reliable operations even in challenging environmental conditions.

Features:

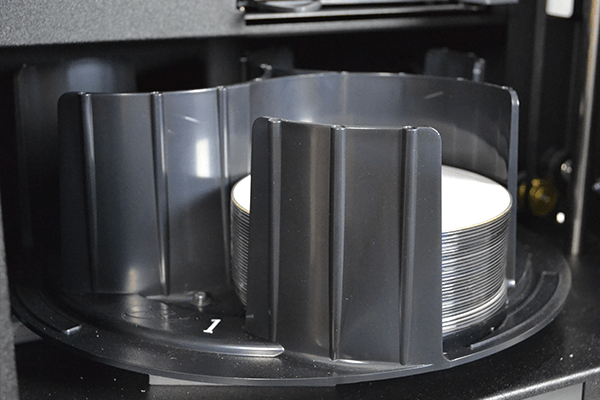

• 150-disc rotating carousel for input/output

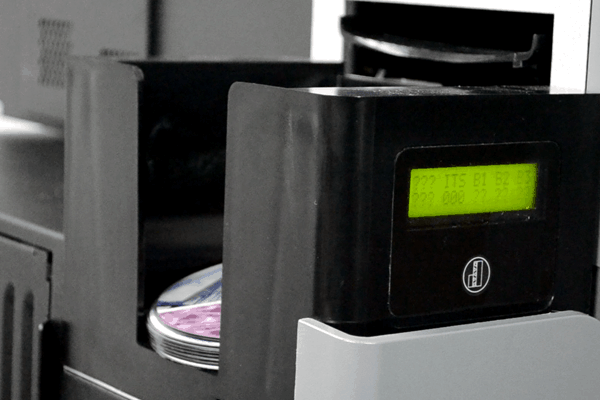

• 50-disc external output

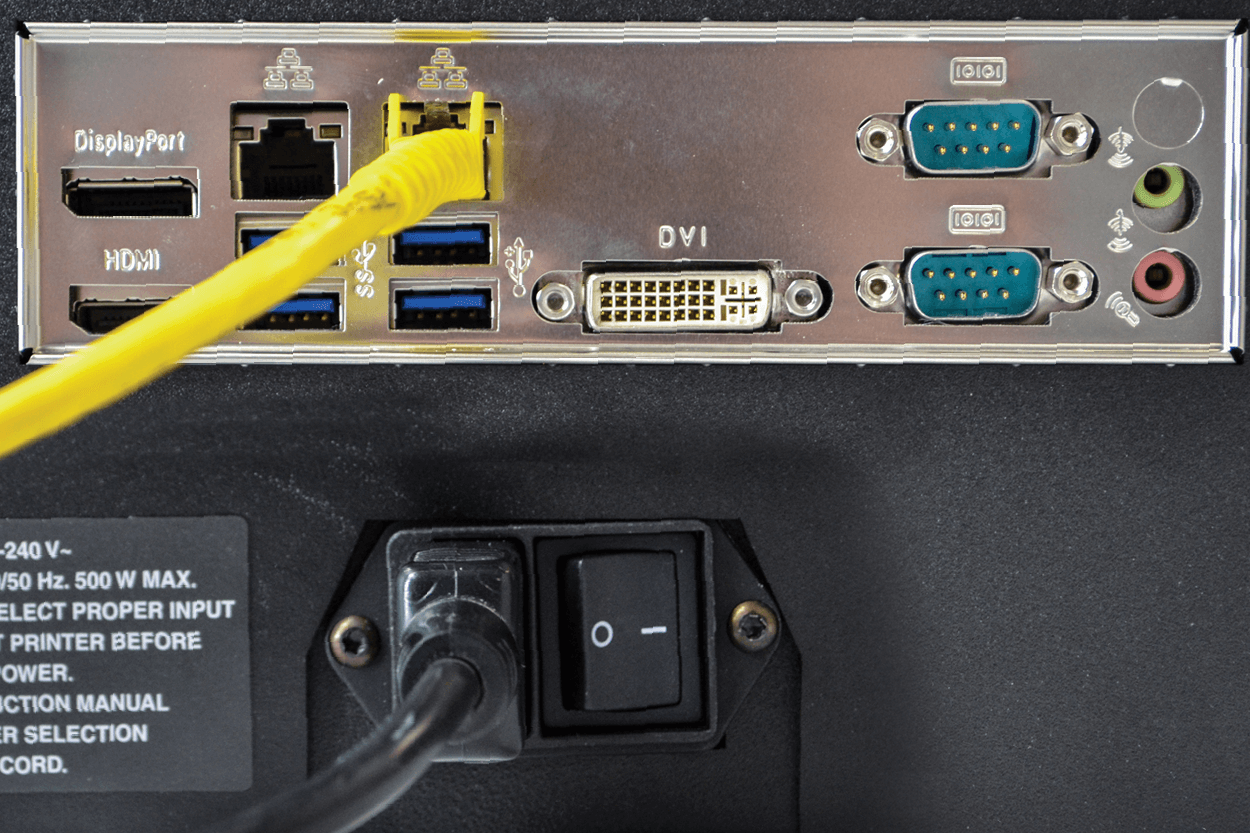

• Embedded computer with network connectivity (on Catalyst® II 6000N only)
• Front accessible air fi lter and positive airfl ow

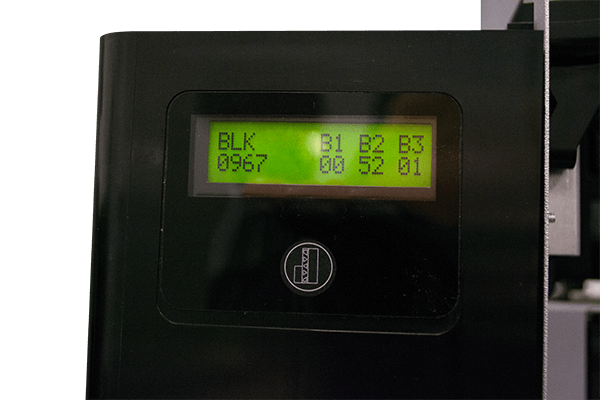

• Two line LCD status display

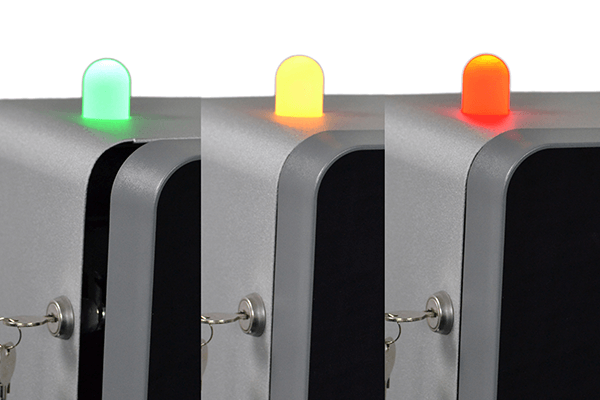

• Integrated DiscWatch™ status light

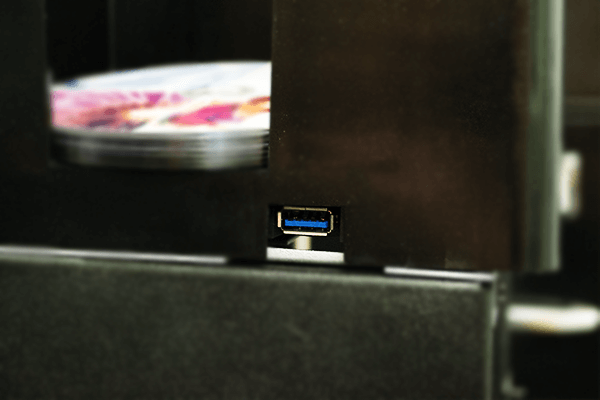

• Front accessible USB 3.0 port
• Internal lighting when the door is opened

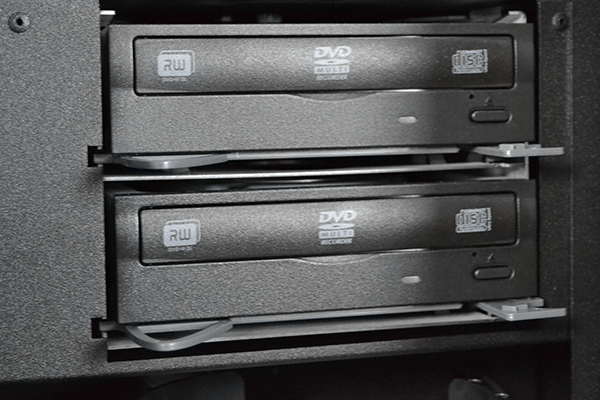

• Two quick-release front-swappable recorders
• Front accessible hard drive bays
• Rimage Software Suite (RSS)
• Everest Encore printer or Prism III printer
– Everest Encore: Best quality printer for permanent, full-color printing
– Prism III: Fastest and lowest-cost per disc thermal monochrome printer on the market

Ideal for medium-volume requirements

Rimage Catalyst incorporates proven, durable components, air filtration innovations, new usability features, a small-footprint frame, and choice of printer. Catalyst is a best-in-class system that is unlike anything else in the market.

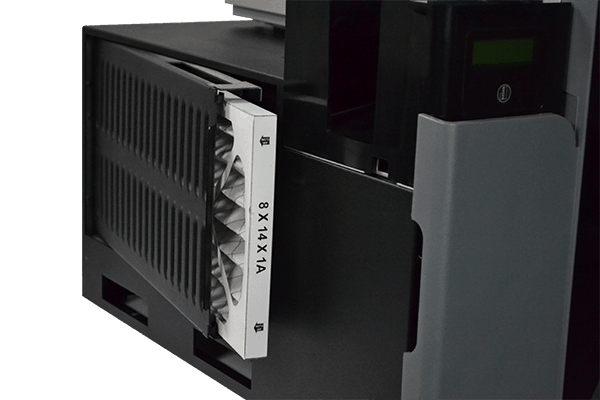

FILTERED POSITIVE AIRFLOW

The Rimage Catalyst series introduces filtered positive airflow into the Rimage product line, offering reliability in environments where dust or debris in the air would normally cripple sensitive robotic systems. Air for cooling is pulled into the system through a commonly available filter, driven by the system’s fan. This increases air pressure inside the system, preventing nearly all dust and dirt that would find its way inside. Air leaving the system is actively pushed out due to this air pressure, effectively restricting debris from coming in through system vents.

Rimage Catalyst II System Specifications

Catalyst II 6000NCatalyst II 6000
Number of Recorders22
Carousel / Total Capacity3 bins / 150 discs
External Output Bin Capacity50 discs
Printer(s)Everest Encore or Prism III
CPUIntel Core i5 – 10500EUser Supplied
Trusted Platform Module (TPM)IncludedN/A
HDD StorageSystem Drive: 1 x 250GB NVME
Cache Drive: 1 x 1TB SSD
User Supplied
RAM8 GBUser Supplied
Operating SystemWin 10 Enterprise 64-bit / Win 11 ReadyUser Supplied
Network AdaptersTwo 1 GB EthernetUser Supplied
Rimage Software Suite (RSS)A fell set of software tools enabling unique artwork design, job submission, system management, production monitoring and custom application creation.
     CD Designer™Label creation software — Included
     QuickDisc™Disc burning software — Included
Height25.5 in / 64.7 cm
Width16 in / 40.6 cm
Depth*23.25 in / 59 cm
Weight (without printer)65.3 lb / 29.7 kg61.7 lb / 28 kg
Weight w/ Everest Encore109.3 lb / 49.7 kg105.7 lb / 48 kg
Weight w/ Prism III85.3 lb / 38.8 kg81.7 lb / 37.1 kg
Power Specifications100-240 VAC, 60/50 Hz, 3.9-2.6 AMP, 500 watt Maximum
Manufacturer’s Warranty12 Months
* Allow space (3.5” or 9 cm) in rear of machine for cabling.

Every Rimage Catalyst Series disc publishing system includes the Rimage Software Suite (RSS), a complete set of software unlocking the full potential of the Rimage system. The suite includes tools to submit and manage print and record jobs, create unique artwork for each disc, monitor and control system operation of one or a number of Rimage systems, and integrate into workflows to fully automate disc publishing.

RIMAGE SOFTWARE SUITE CONTAINS:

  • CD Designer™ provides users the ability to create, import, and customize graphics to be printed on your disc surface.
  • QuickDisc™ allows users to assemble and submit projects to their Rimage system.
  • Rimage System Manager allows users to fully control and monitor all Rimage systems from any location on the network. View the status of jobs, configure bins and get accurate available media counts to keep production flowing.
  • Rimage Services includes Production Server to control the hardware and manage all aspects of printing and recording, Image Server to create a wide range of disc formats with options such as image encryption with password protection, and other Rimage services that enable the functionality of client software tools.

For maximum flexibility, RSS also includes web clients for Windows® and Mac OS® that provide the same capability, but without the need to install any software:

  • WebQD™ extends primary functionality of QuickDisc to any computer with network access to the Rimage system and a web browser.
  • WebRSM™ extends the functionality of Rimage System Manager to any computer with network access to the Rimage system and a web browser.

Available upon request at no charge to Rimage disc publishing users simply by contacting Rimage Support:

  • Software Developer Kit (SDK) includes the APIs (Application Programming Interface) and information needed to integrate the Rimage with other software and automate the Rimage system in custom workflows.

See the software page for full details about each software component and RSS release history.

Explore Software

Rimage Service and Support is the industry leader in delivering high-quality world-wide service with superior response times that maximize your return on investment. Rimage Service and Support offerings are designed to meet the level of service you need.

FOR Rimage CATALYST™, SERVICE AND SUPPORT OPTIONS ARE:

  • Rapid Exchange gives you speed and value with next business day advanced delivery of a replacement unit or printer for you to install. Includes Software Subscription and Support.
  • Software Subscription and Support keeps your base system software up-to-date with the latest software innovations from Rimage.
  • Onsite Installation and Training ensures that both your Rimage system and your operators are fully prepared for production.
  • Virtual Installation is a private remote installation and training session, typically 1 to 1-1/2 hours depending on customer requirements.
  • Proactive Care Service minimize downtime by replacing worn parts, confirming that the system is properly adjusted, and ensuring the system is refreshed for peak production.

With Rimage, you can be assured of quality world-wide service, immediate response times, and unrivaled high-value maintenance agreements.  When you choose Rimage, you choose success.

See the Service and Support page for full details about each service and support option.

Service and Support



For complete Warranty information and details of Maintenance Agreement Terms and Conditions, please see our Legal page.

Legal



RIMAGE MEDIA

Rimage printable CD/DVD/BD media is engineered to achieve an exceptional, professional look, helping you treat every project like it’s your most important one. Whether you purchase single layer CD or DVD, single or dual layer Blu-ray, silver or white discs, Rimage media is sourced to exact specifications. Discs are taken through rigorous quality assurance processes and manufactured to the tolerances required for Rimage robotic and printing systems.

Rimage media is designed to work together with Rimage ribbons and ink cartridges for extraordinary print quality and data integrity, and is matched precisely to your system’s specifications for faster write speeds and error-free operation.

Everest® discs contain a special top coating optimized for Rimage printers, resulting in better print quality and system performance. Your finished Everest disc is scratch-proof, waterproof, fade-resistant, and UV protected.

Media for Prism™ printers includes CDs, DVDs, and Blu-ray discs with lacquer surface for optimal direct thermal transfer printing.

Everest Ribbons

Make a great impression.

With Rimage thermal ribbons, you get the very best from your Everest printer. The three-paneled CMY ribbons make full-color artwork come to life with levels of sharpness and detail unique to Rimage printers. For black and white images or simple black text, monochrome ribbons are ideal for high resolution, full-coverage, and superior grayscale printing. Retransfer ribbons bring it all together by fusing artwork and data to the discs, making sure that with every job—big or small—you’ll consistently print images and text that will not fade, scratch or smudge for the life of the disc.

Everest Encore Ribbon Features

  • Highest print resolution in the industry—600dpi
  • Fixed yields and predictable cost per printed disc
  • Provides scratch proof, waterproof, fade resistant and UV protected printing
  • Optimized for use with Everest printers
  • Available for purchase in single packs or in Rimage Media Kits

Prism Thermal ribbons

Get high quality at a low cost.

Rimage offers a selection of colored and monochrome thermal ribbons tailored to Prism printing. Enjoy high quality monochrome prints and vector artwork with solid black thermal ribbons, or add a full range of color with blue, red or three-panel CMY ribbons. No matter which ribbons you choose, you’ll benefit from the lowest-cost per print for on-demand CD and DVD printing plus clear, crisp text and images that last.

Prism Ribbon Features

  • 2100+ prints or more with black, red and blue Prism ribbons
  • 500 prints with three-paneled CMY ribbons
  • Waterproof and scratch-resistant images and text
  • Zero drying time
  • Proven to offer superior print performance as well as lasting durability in competitive assessment testing
  • Optimized for use with Prism printers

Only Rimage media is approved and guaranteed. For full details, view the Rimage Optical Media Guarantee.

See the supplies page for additional information about ribbons, inkjet cartridges, media, media kits, and warranty/guarantee.
