RX400M USB-Solution
The RX400M is the evolution of the well-known Rimage patient CD solutions. Deliver studies on a state of the art write protected RX400 USB-Stick with the RX400M high-performance data copy system. Save your entire collection of diagnostic data in full resolution with just the touch of a finger.
The USB Sticks can be used alongside conventional patient CD, with added benefits such as high speed, storage space and independence from the availability of a CD drive.
The compact RX400M is easy to set up for system integrators, health care providers and hospitals.
Rimage Patient USB-Sticks, the modern version of the proven patient CD.
They offer many advantages:
1. higher compatibility, as a CD drive is no longer required,
2. more speed to open studies faster
3. more storage space to store related studies together over a period of time and compare them more easily
Normal USB-Sticks are considered as a potential security risk in many hospitals and clinics and are therefore often not opened or USB ports on PCs are even blocked for USB sticks.
Rimage Patient USB sticks are as secure as a CD. They have a pre-write protection already at delivery and can therefore only be recorded via our RX400 MedX devices, as part of a medical integration.
The write protection is also active after the medical records have been added. This limits the risk of adding potential viruses or malware afterwards, as all other systems only have read access and can´t modify the data.
How to recognize a secure Rimage USB flash drive:
– White case with gray slider
– Rimage logo
– Sticker with patient ID and other patient data (if the stick is recorded)
RAM/HDD: 16 GB RAM, 480 GB SSD
Number of Recorders: 4
Optional HDD Removable SSD with up to 8 TB
Display: 10.1 Zoll Touch Display, 1280 x 600 px
Network Adapters: Two 1 GB Ethernet
Printer: Thermal Label Printer
Label: Paper labels, adhesive, 54×25 mm
Height: 6.2 in/ 158 mm (back), 3.2 in/ 82 mm (front)
Width: 17.95 in / 456 mm
Depth:* 10 in / 254 mm
Weight: 19.84 lbs/ 9 kg
Power Specifications: 100 – 240V~, 4-2A 60-50H
Warranty 12 months
Value for Hospitals and Clinics
Simplified Operations
The integrated touchscreen shows all waiting studies, sorted by patient, coming from any connected DICOM source in your hospital. Via touch screen, you can select which study you want to store on the USB-Stick.
With the high-performance hardware you can create USBSticks with common data, approx. 500 MB, in less than 30 sec. This allows you to create media on the spot, whenever a patient shows up at your front desk.
Security
The RX400M can exclusively be used with Rimage USB-Sticks that have special security features such as WORM (write once, read many) or Multi-Write protection. This dramatically increase the propability that no other fi les that may contain malware, viruses or other threats can be added on the stick and thus get into highly sensitive networks.
Only with the RX400M system you are able to unlock the pre-protection, add new data, and reactivate the write protection afterwards. This limits the risks of Malicious USBSticks and provides an additional IT-Environment protection.

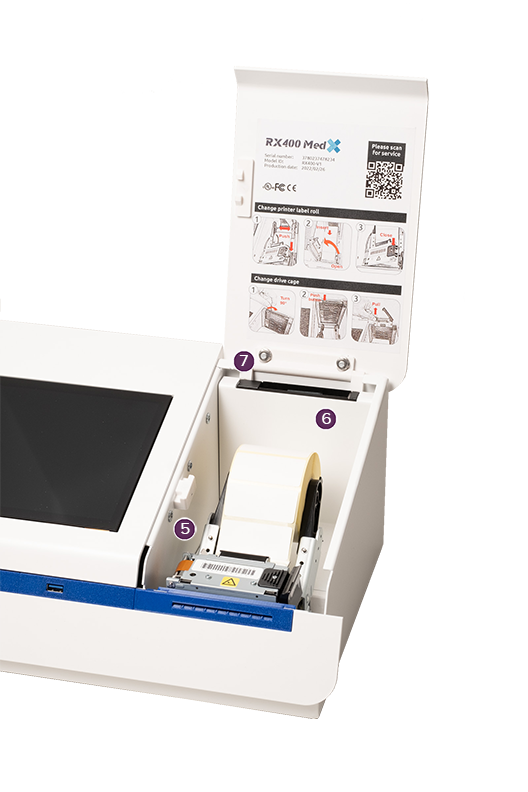

With the integrated, adhesive paper thermal printer you can easily label the USB-Sticks individually, ensuring you are handing the right stick to the right person. The dedicated patient labels are automatically created once you unplug a recorded and verified USB-Stick.
Reliable Workflow
Because the RX400M contains no moving or mechanical parts, it requires very little maintenance and is easy to service.
With the easily accessible SSD that is securely locked within an cage, containing device confi guration data and locally used study data, you can even request an exchange unit if required and just use the existing SSD in the new unit. In this case, your sensitive data will never leave your environment.
Value for System Integrators
Dedicated Support
The Rimage worldwide service organization has dedicated applications engineers to provide support during all stages of system integration.
Easy Integration
The RX400M API enables easy integration for DICOM Software providers. The RX400M is already fully integrated into several DICOM patient CD/USB Solutions.
USB Technology
Allows Integrators to easily output on a new media source besides the Rimage optical systems.
Value for Patients
Reliable Records
Having the option of reusing your USB-Stick, you can keep track of all your recent medical data on a single source. This allows physicians to compare successive studies of a patient, which helps them better diagnose disease progression.
Shorter Wait Times
RX400M will provide a USB-Stick with a typical study in less then 30 seconds, so patients don’t have to wait long for their personalized USB-Sticks.
Data Privacy and Security
Your personal medical data can be encrypted and in case of a loss, it will be nearly impossible to access your sensitive patient data and records. This feature however, needs to be supported by your DICOM Software.
Service Options
For the RX400M system we offer to different typ of maintenance contracts to accomadate the needs of our customers best in terrms of value and budget.
Fast-Track Service
Rimage will send out a replacement unit to the customer on next working day on Rimage costs.
When the system arrives at the customer, the customer needs to send back the broken unit using the included return label. (Using the packaging of the replacement unit is recommended. The freight costs are covered by Rimage).
